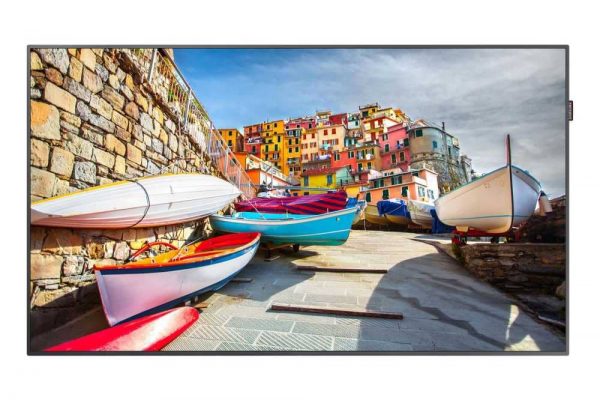

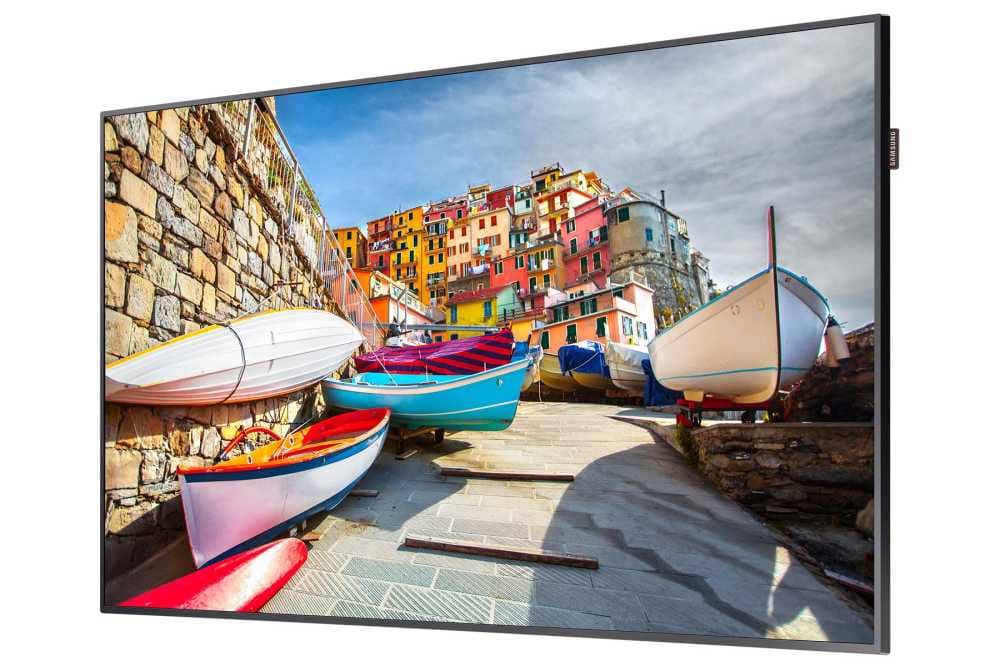

İnce, büyüleyici bir tasarım sunan her türlü iş ihtiyacını karşılamak için üretilmiş birinci sınıf TIZEN destekli samsung digital signage. TIZEN ™ tarafından desteklenen yerleşik MagicInfo Player S4 ile hepsi bir arada ekran çözümü IP5x sertifikası ve parlamayan panel, çeşitli çevresel koşullara dayanıklıdır
| Çapraz boyut 55 ” |
| çözünürlük 1920 * 1080 (HD) |
| Parlaklık 500nit |
İnce, büyüleyici bir tasarım sunan her türlü iş ihtiyacını karşılamak için üretilmiş birinci sınıf TIZEN destekli samsung digital signage. TIZEN ™ tarafından desteklenen yerleşik MagicInfo Player S4 ile hepsi bir arada ekran çözümü IP5x sertifikası ve parlamayan panel, çeşitli çevresel koşullara dayanıklıdır
| Çapraz boyut 55 ” |
| çözünürlük 1920 * 1080 (HD) |
| Parlaklık 500nit |
| Diagonal Size | 55 | ||
| Type | 60Hz E-LED BLU | ||
| Resolution | 1920*1080 (Full HD) | ||
| Pixel Pitch(mm) | 0.21(H) x 0.63(V) | ||
| Active Display Area(mm) | 1209.6(H) x 680.4(V) | ||
| Brightness(Typ.) | 500 nit | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle(H/V) | 178:178 | ||
| Response Time(G-to-G) | 6ms | ||
| Display Colors | 10bit Dithering – 1.07Billion | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 25% | ||
| Display | |||
| Dynamic C/R | Mega | ||
| H-Scanning Frequency | 30 ~ 81kHZ | ||
| V-Scanning Frequency | 48 ~ 75HZ | ||
| Maximum Pixel Frequency | 148.5MHz | ||
| Sound | |||
| Speaker Type | Built in Speaker(10W + 10W) | ||
| Connectivity | |||

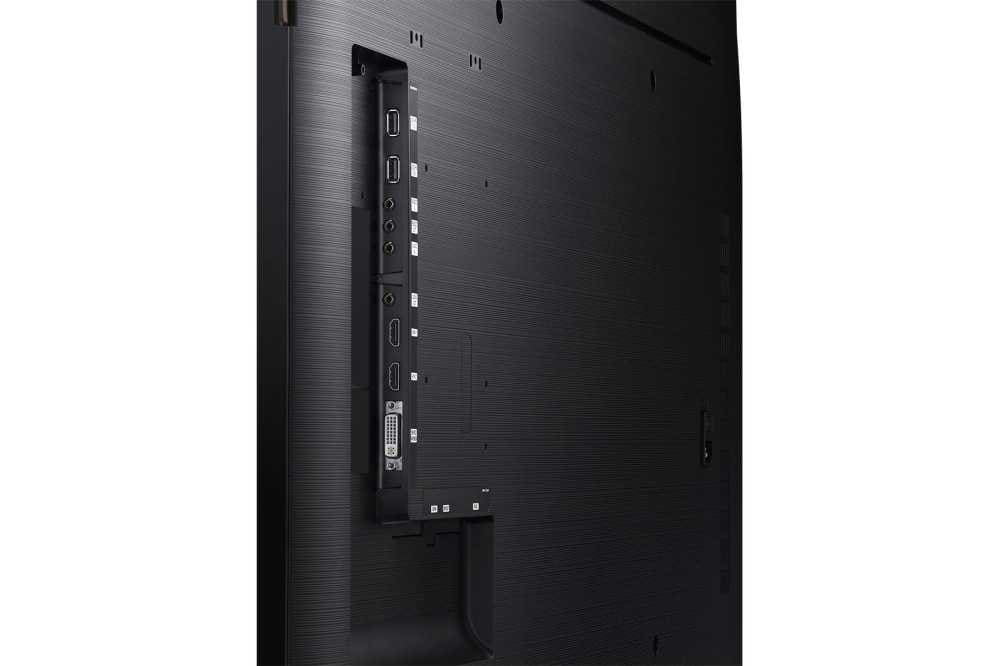

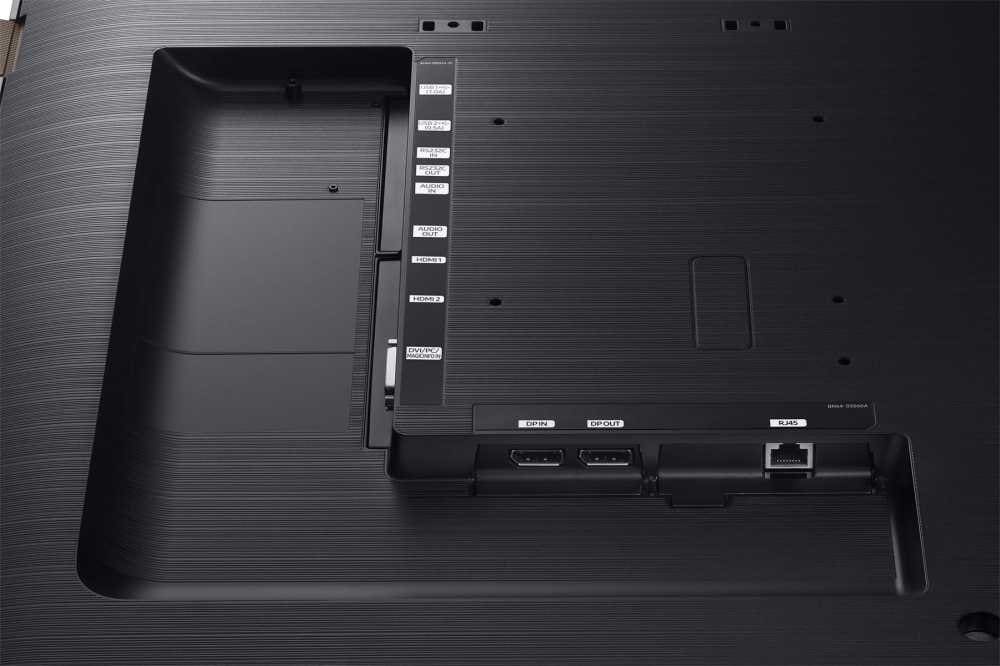

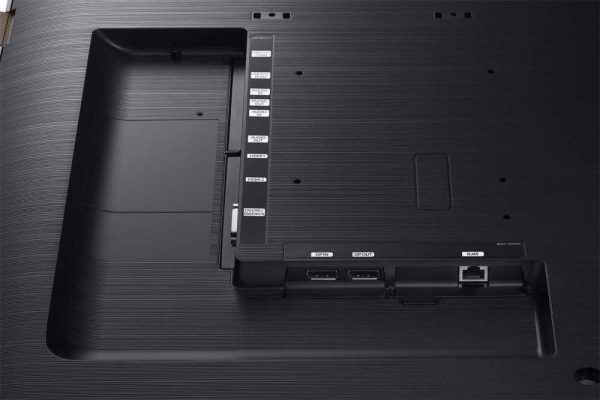

| Input | |||
| RGB | DVI-I(D-Sub Common), Display Port 1.2 (2) | ||
| Video | HDMI 2.0 (2) / HDCP 2.2 | ||
| HDCP | HDCP 2.2 | ||
| Audio | Stereo mini Jack, RGB/DVI/HDMI | ||
| USB | USB 2.0 x 2 | ||
| Output | |||
| RGB | DP1.2(Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out) thru Stereo Jack, RJ45 | ||
| Tuner | Yes(only for NA) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 187 | ||
| Typical[W/h] | EU115, US 55, WW 115 | ||
| BTU(Max) | 637.67 | ||
| Sleep mode | less than 0.5W | ||
| Off mode | less than 0.5W | ||

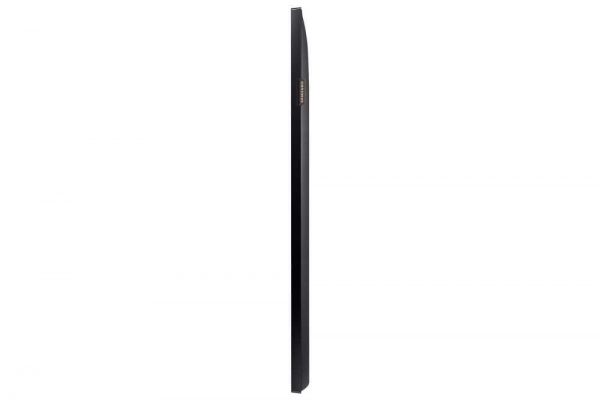

| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1232.7 X 705.5 X 30.5 | ||
| Package | 1383 x 819 x 160 | ||
| Weight (kg) | |||
| Set | 16.May | ||
| Package | 22.Oca | ||
| Stand Type | Foot Stand (Optional) | ||
| Bezel Width (mm) | 9.0/9.0/11.0 | ||
| Operation | |||
| Operating Temperature | 0.0 ℃ ~ 40.0 ℃ | Humidity | 10.0 % ~ 80.0 % |
| Feature | |||
| Key Features | Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0 | ||
| Special Features | H/W : Non Glare Panel, Temperature Sensor, Video Wall(15×15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall(external source only), Multi Channel, Mobile Control, Event Schedule, Backup Player | ||
| Internal Player | Processor | Cortex-A12 1.3GHz Quad Core CPU | |
| On-Chip Cache Memory | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB | ||
| Clock Speed | 1.3GHz CPU Quad | ||
| Main Memory Interface | 2.5GB 3 channel 96bit DDR3-933 (1866MHz) | ||
| Graphics | 2D & 3D Graphics Engine – Up to 3840x2160p. 32bpp – Supports OpenGL ES | ||
| Storage (FDM) | 8GB (3.75GB Occupied by O/S, 4.25GB Available, ) | ||
| Multimedia | Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc. | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 2.4 (VDLinux) | ||
| Certification | |||
| Safety | CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE | ||
| EMC | FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 | ||
| Accessory | |||
| Included | Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack | ||
| Optional | |||
| Stand | STN-L4655E | ||
| Mount | WMN4270SD | ||
| Specialty | CML450H | ||
