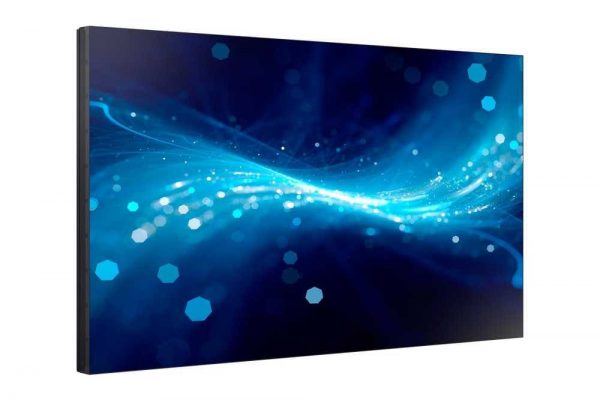

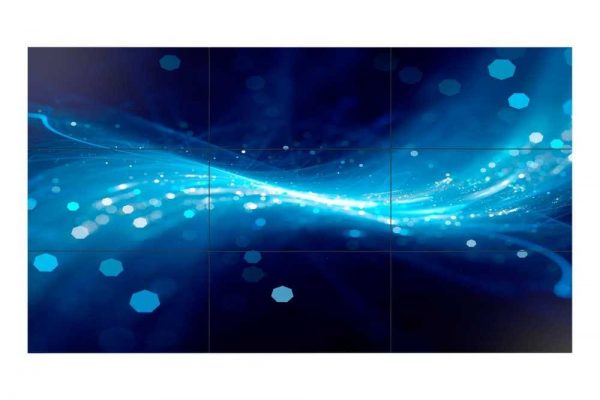

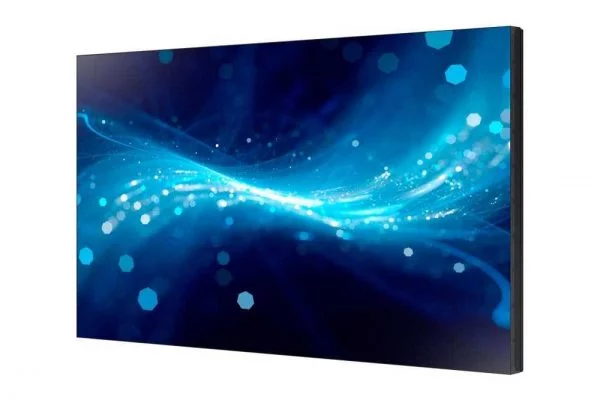

Daha derin görsel etki ve 1,7 mm’lik daha ince çerçeve genişliği sunan birinci sınıf videowall ekran. Neredeyse kesintisiz, gerçeğe yakın izleme deneyimi için aşırı dar çerçeve (B’den B’ye 1,7 mm) ve UHD çözünürlük.
| Çapraz boyut 55” |
| Panel Çözünürlüğü 1920 * 1080 (Full HD) |
| Parlaklık 700nit |
Daha derin görsel etki ve 1,7 mm’lik daha ince çerçeve genişliği sunan birinci sınıf videowall ekran. Neredeyse kesintisiz, gerçeğe yakın izleme deneyimi için aşırı dar çerçeve (B’den B’ye 1,7 mm) ve UHD çözünürlük.
| Çapraz boyut 55” |
| Panel Çözünürlüğü 1920 * 1080 (Full HD) |
| Parlaklık 700nit |
| Diagonal Size | 55 | ||
| Type | D-LED DID | ||
| Resolution | 1920*1080 (Full HD) | ||
| Pixel Pitch(mm) | 0.63mm(H) X 0.63mm(V) | ||
| Active Display Area(mm) | 1209.6 X 680.4mm | ||
| Brightness(Typ.) | 700 nit | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms | ||
| Display Colors | 8 bit – 16.7M | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 25% (Outer Haze 23%) | ||
| Display | |||
| Dynamic C/R | MEGA DCR | ||
| H-Scanning Frequency | 30kHz ~ 81kHz | ||
| V-Scanning Frequency | 48Hz ~ 75Hz | ||
| Maximum Pixel Frequency | 148.5MHz | ||

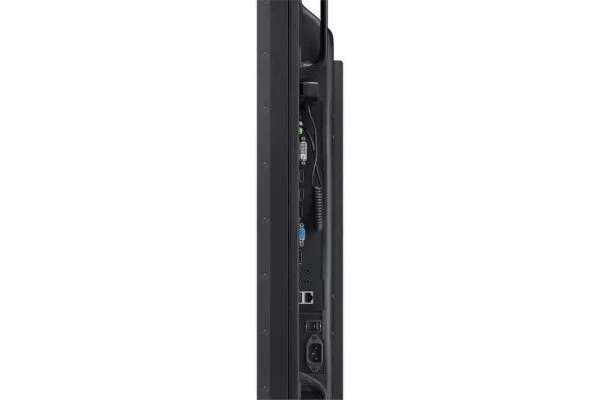

| Connectivity | |||
| Input | |||
| RGB | Analog D-SUB, DVI-D, Display Port 1.2 | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| Audio | Stereo mini Jack | ||
| USB | Only F/W upgrade | ||
| Output | |||
| RGB | DP1.2(Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out), RJ45 | ||
| External Sensor | Detachable type(IR, Ambient) | ||
| Tuner | No | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 297 | ||
| Typical[W/h] | 180 | ||
| BTU(Max) | 1013.0 | ||
| Sleep mode | less than 0.5W | ||
| Off mode | less than 0.5W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1211.6 X 682.4 X 96.3 | ||
| Package | 1355 x 809 x 320 | ||
| Weight (kg) | |||
| Set | 21.0kg | ||
| Package | 28.2kg | ||
| Bezel Width (mm) | 1.15mm(U/L), 0.55mm(R/B) | ||
| Operation | |||
| Operating Temperature | 0.0 ℃ ~ 40.0 ℃ | Humidity | 10.0 % ~ 80.0 % |
| Feature | |||
| Key Features | Extreme Narrow Bezel | ||
| Special Features | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping) | ||
| Internal Player | Processor | N/A | |
| On-Chip Cache Memory | N/A | ||
| Clock Speed | N/A | ||
| Main Memory Interface | N/A | ||
| Graphics | N/A | ||
| Storage (FDM) | N/A | ||
| Multimedia | N/A | ||
| IO Ports | N/A | ||
| Operating System | N/A | ||
| Certification | |||
| Safety | UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 | ||
| EMC | FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012 | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries | ||
| Optional | |||
| Stand | N/A | ||
| Mount | WMN-55VD | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | SBB(Slide In), Signage player box | ||
Fiyat bilgisi ve ürün hakkında bilgi almak için formu doldurun. Sizinle iletişim kuralım
