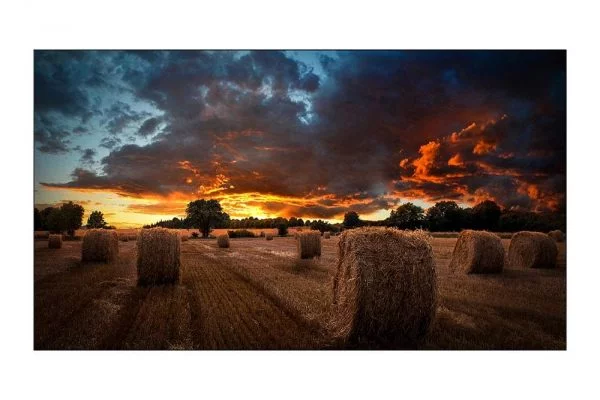

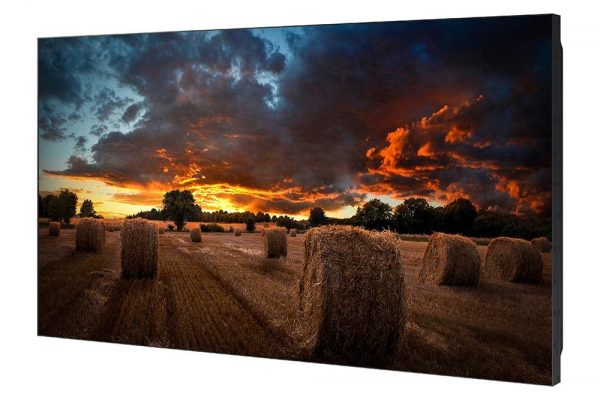

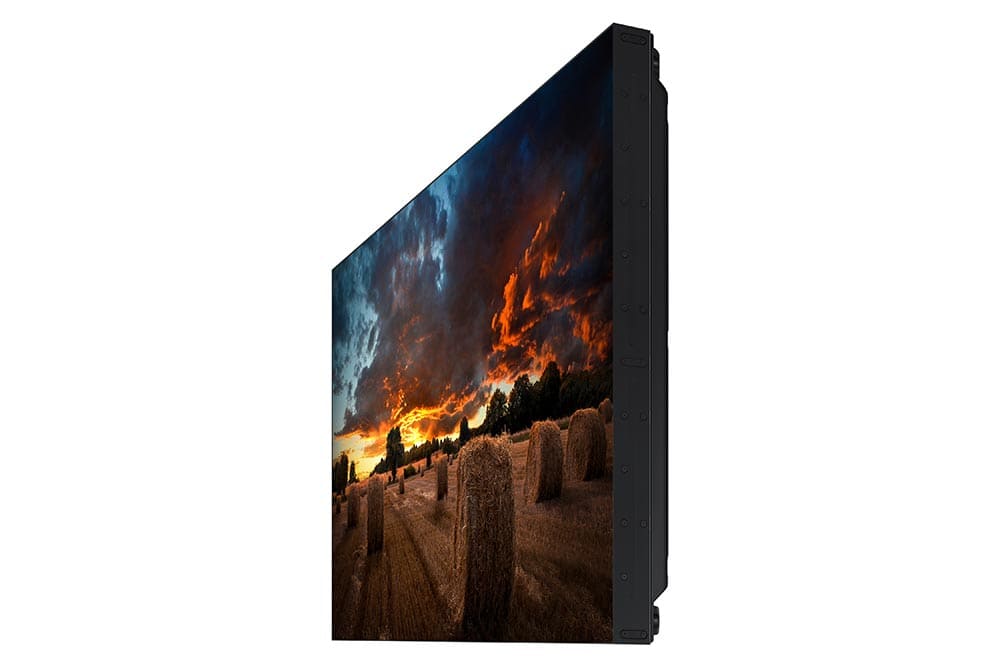

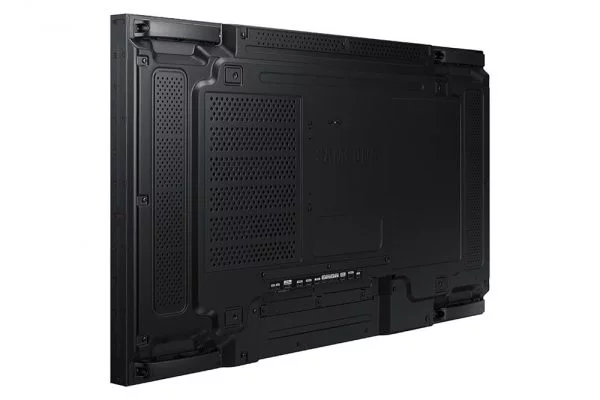

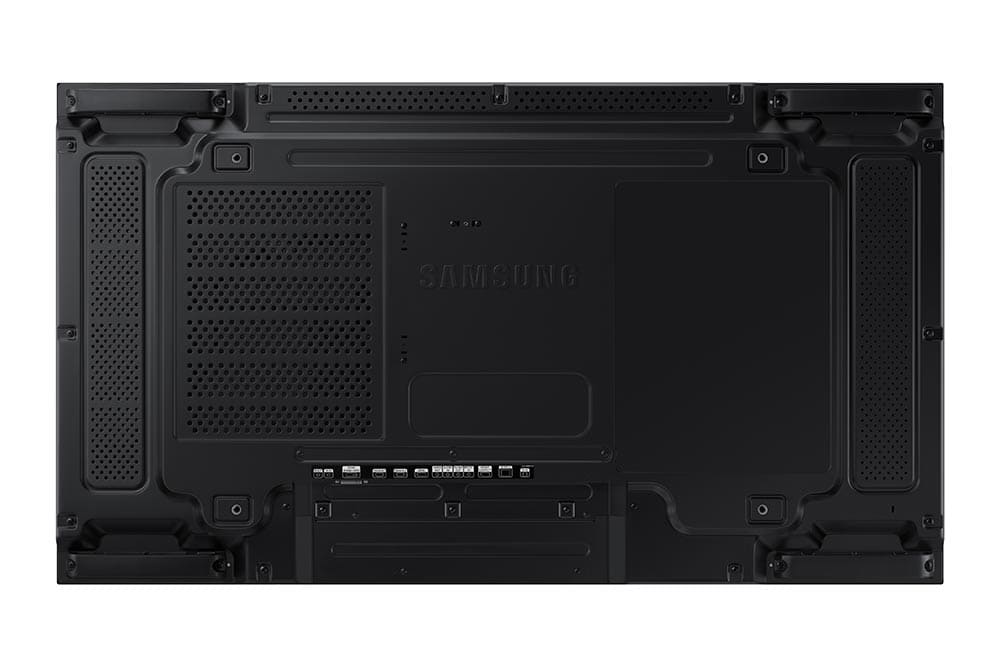

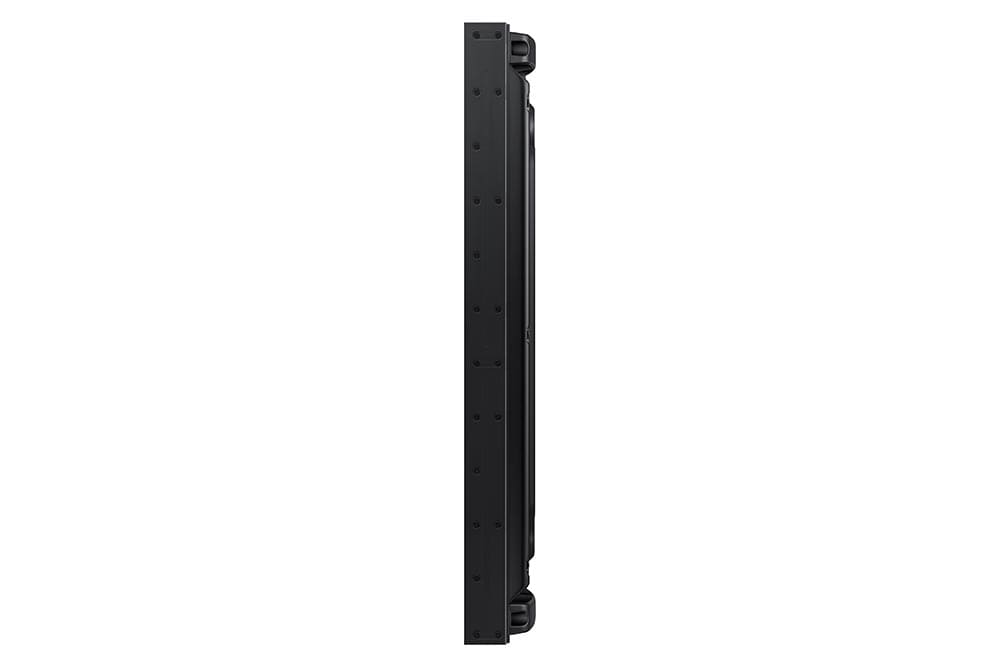

VM55T-U Samsung Videowall Ekran

Olağanüstü ince kabin derinliği,  her türden mimari yapıya video wall oluşturmak için esneklik sağlar. Parlamayan paneller, canlı ve doğru içeriği korumak için ışığı ekrana eşit olarak dağıtır.

Çapraz boyut 55”
Panel Çözünürlüğü 1920 * 1080 (Full HD)
Parlaklık 700nit

Sınıf

Endüstiyel Tip

Destek

Yerinde Servis

Garanti

Üretici Garantili

  1. Anasayfa
  2. Videowall
  3. VM55T-U Samsung Videowall Ekran

VM55T-U Samsung Videowall Ekran

Olağanüstü ince kabin derinliği,  her türden mimari yapıya video wall oluşturmak için esneklik sağlar. Parlamayan paneller, canlı ve doğru içeriği korumak için ışığı ekrana eşit olarak dağıtır.

Çapraz boyut 55”
Panel Çözünürlüğü 1920 * 1080 (Full HD)
Parlaklık 700nit

Sınıf

Endüstiyel Tip

Destek

Yerinde Servis

Garanti

Üretici Garantili

Ürünü Paylaş :

Diagonal Size55
TypeIPS
Resolution1920*1080 (Full HD)
Pixel Pitch(mm)0.63mm(H)*0.63mm(V)
Active Display Area(mm)1209.6 * 680.4 mm
Brightness(Typ.)500 nit
Contrast Ratio1200:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)8ms
Display Colors8 bit – 16.7M
Color Gamut72%
Operation Hour24/7
Haze25%
Display
Dynamic C/R45,000:1
H-Scanning Frequency57.3kHz ~ 70kHz
V-Scanning Frequency48Hz ~ 75Hz
Maximum Pixel Frequency78MHz

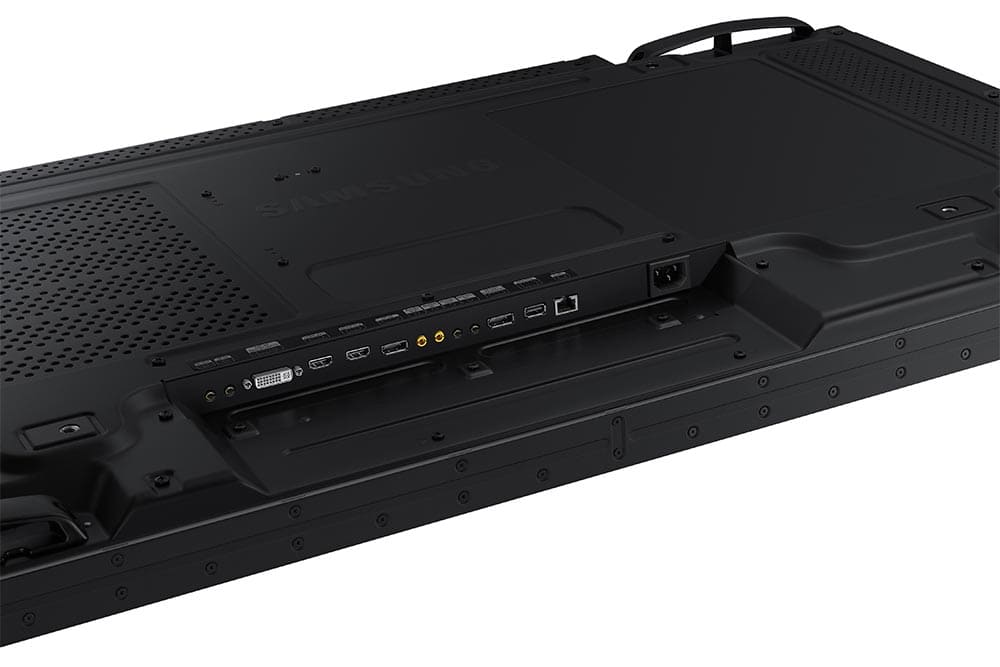

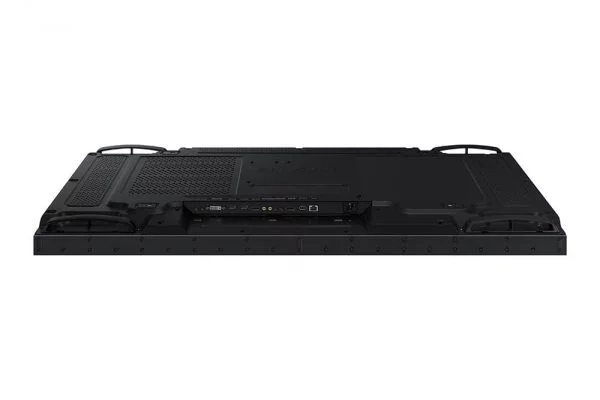

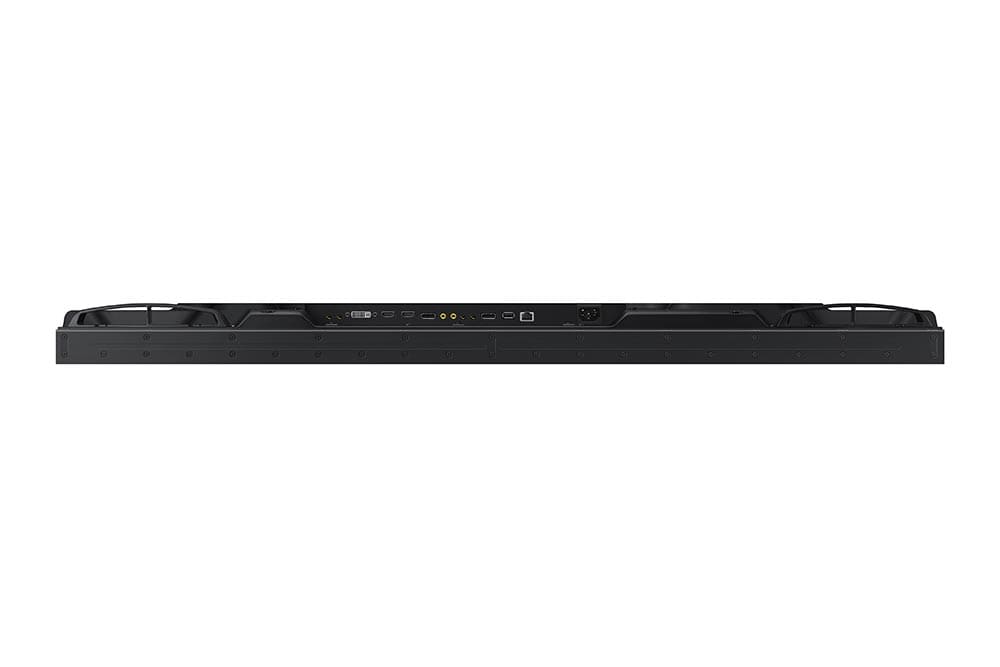

Connectivity
Input
RGBDVI-D, Display Port 1.2
VideoHDMI 2.0 (2)
HDCPHDCP 2.2
AudioStereo mini Jack
USBOnly F/W upgrade
Output
RGBDP1.2(Loop-out)
AudioStereo mini Jack
External ControlRS232C(in/out), RJ45
External SensorDetachable type(IR)
Power
TypeInternal
Power SupplyAC 100 – 240 V, 50/60 Hz
Power Consumption
Max[W/h]242W
Typical[W/h]136W
BTU(Max)825.0
Sleep modeless than 0.5W
Off modeless than 0.5W

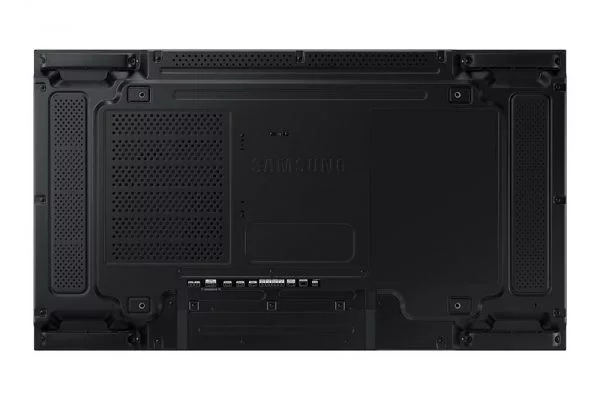

Mechanical Specification
Dimension (mm)
Set1213.5 x 684.3 x 73.1
Package1398 x 844 x 257
Weight (kg)
Set21.Şub
Package28.Ağu
Bezel Width (mm)2.3mm(U/L), 1.2mm(R/B)
Operation
Operating Temperature0  ℃  ~   40   ℃Humidity10  %  ~   80   %
Feature
Key FeaturesUltra Narrow Bezel
Special FeaturesACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A, Center IR
Certification
SafetyUL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
EMCFCC (USA) FCC Part 15, Subpart B class B CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012
IP RatingIP5X
Accessory
IncludedQuick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR
Optional
StandN/A
MountWMN-55VD
SpecialtyN/A
Media Player
Media PlayerSignage player box
